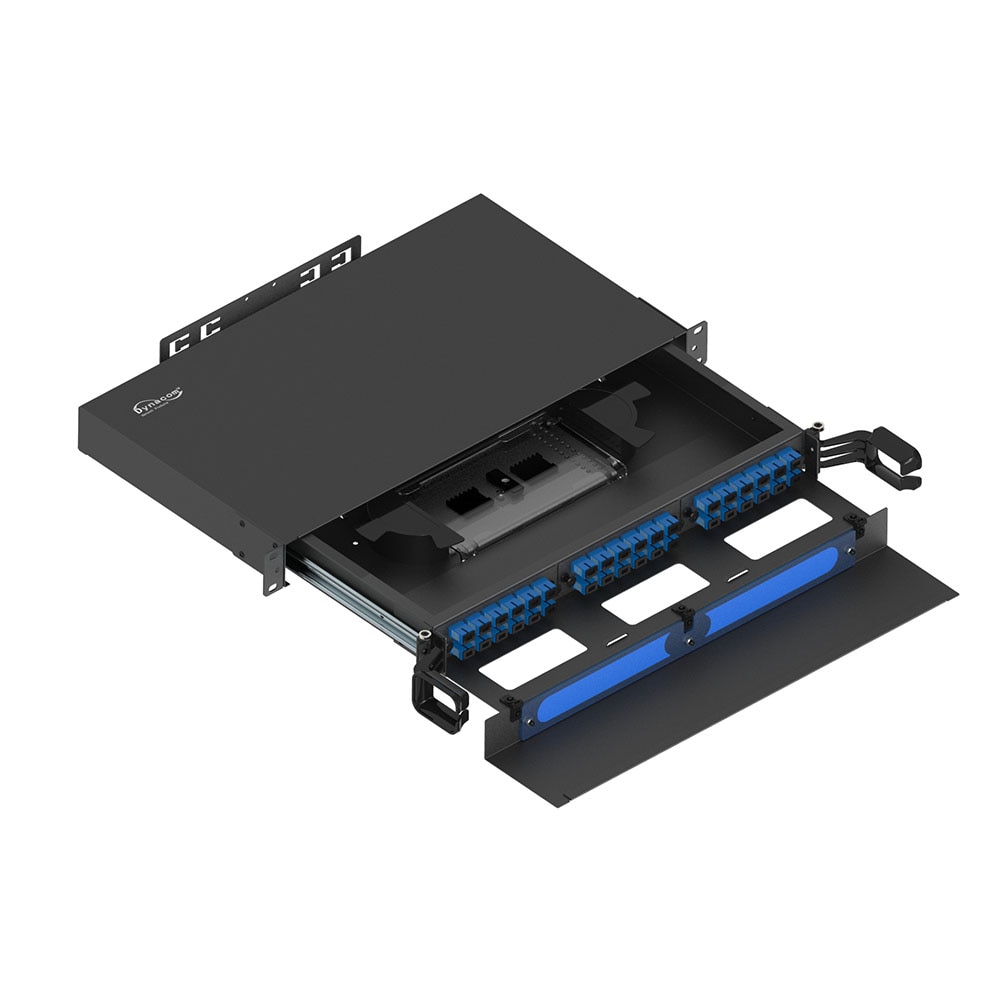

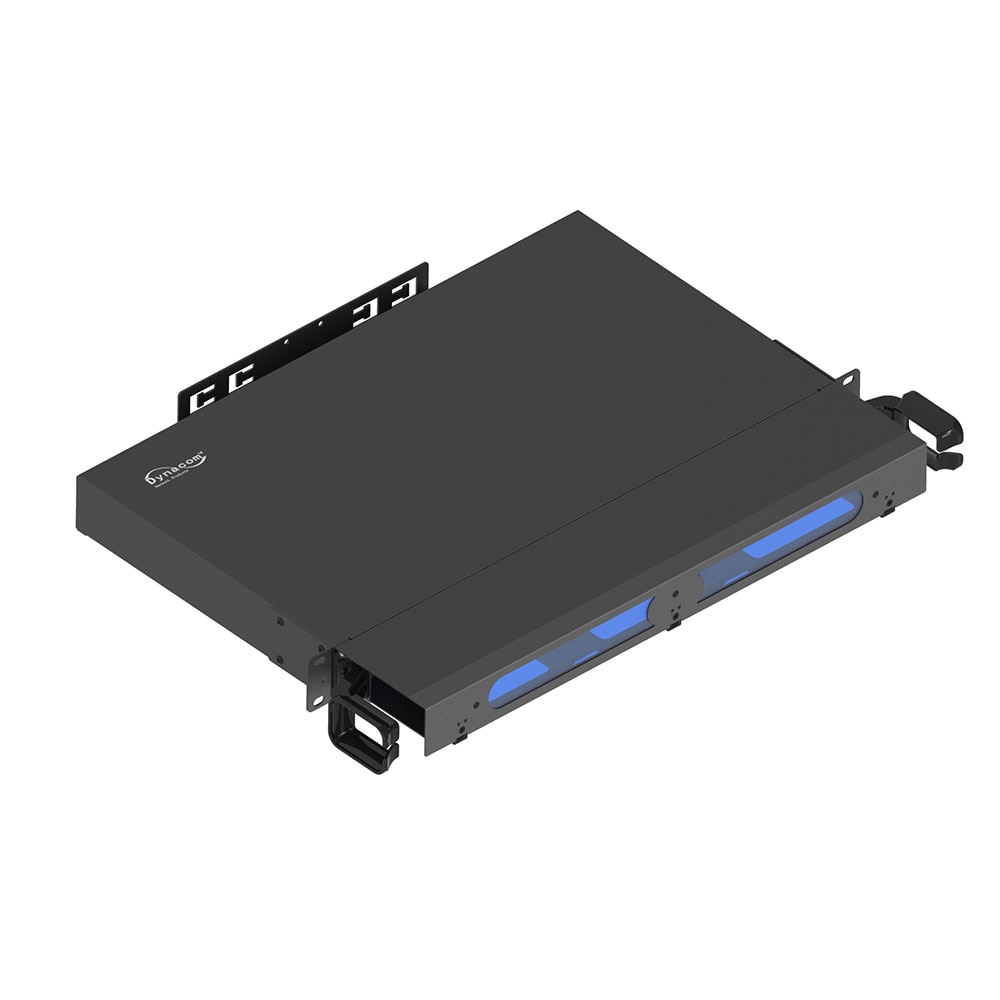

*NEW DESIGN* Dynacom Premium 1U Slide-Out Rackmount Fiber Enclosure w/ Front Cover - 3 Panel LGX

UTILITY

The Dynacom Premium 1U Slide-Out Rack-Mount 3-Panel Fiber Optic Enclosure is a compact rack-mount fiber tray that conveniently slides out 10 inches to provide easy access. Although the tray easily slides out, it has rail stops to keep it from being pulled too far and damaging your fiber splices. Two large openings on the back of the tray provide fiber cable entry, while two large openings on the front make cable management easy. The Premium Fiber Tray also includes a built in cable guide on the back for easy cable management. Additionally, this 900-FRM-3C has an aluminum splice tray assembly with a transparent cover. Splice tray has a removable body for efficient splice assembly.

AVAILABILITY

This rack-mount fiber enclosure fits all 19”-wide rack-mount equipment and can be easily mounted on a 19”-wide rack. It is ideal for direct termination and splice solutions for LAN applications.

Compact 1U design saves space

New design features a hinged front cover

Sturdy construction with a black powder-coated finish for good looks and durability

This item ships free when your qualified order totals $200 or more. Free shipping usually takes two to five business days. If you need it sooner, we offer other shipping methods.

VALUE

Get easy installation and access with this smartly designed fiber optic enclosure. If you have questions, call us toll-free for helpful answers.

* Coupler panels are not included

This 1U Fiber Enclosure works with:
- 6 Port (12F) Loaded LC Adapter Panel (Aqua)
- 6 Port (12F) Loaded LC Adapter Panel (Blue)
- 6 Port (6F) Loaded SC Adapter Panel
- 6 Port (6F) Loaded ST Adapter Panel
- Blank Fiber Enclosure Adapter Panel
* Any other LGX (118mm) fiber panel. Click this link for the full list: LGX Fiber Coupler Panels

• Newly redesigned with a hinged front cover
• Holds Three Standard LGX Adapter Panels
• Compact 1U size and fits all standard 19" rack equipment
• Smooth-Slide rails allow tray extension up to 10 inches
• Aluminum Splice Tray Assembly with transparent cover has a removable body for efficient splice assembly
• Accessible rear Cable Guide

Dimensions: 1 ¾ ” high x 17 ¼ ” wide x 14” deep
Weight: 8 lbs.
Material: Powder Coated Steel, Black
Capacity: 3 LGX Panels
Aluminum Splice Tray: Included (24 strand capacity)
