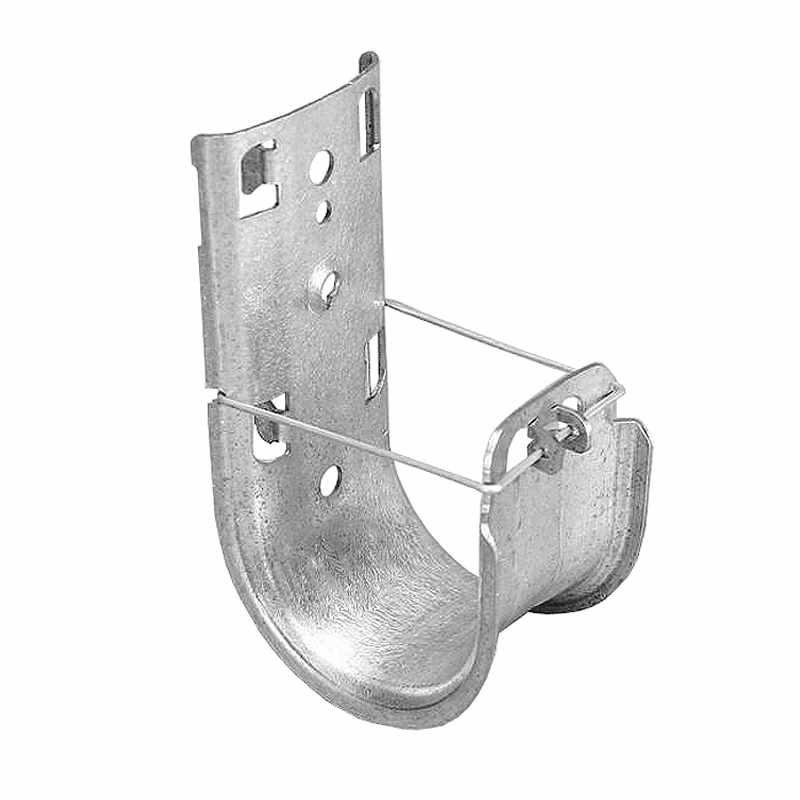

Caddy CAT21HP 1 5/16" J-Hook, CAT6a Compliant
$3.99
Reference#: 67708
Item#: ERICO-CAT21HP
Item#: ERICO-CAT21HP
Description
CADDY CAT21HP J-Hooks have a wide base design and smooth beveled edges to provide a large bending radius for current and future high-performance data cables, fiber optic cables, innerduct and coax cables. Individual CADDY CAT21HP J-Hooks can be fastened directly to the building structure or can be used to expand existing CADDY CAT HP J-Hook cable supports. The J-Hooks are designed to provide a strong and stable pathway support installation.
The CAT21HP 1-5/16" j-hooks can hold approximately 50 Cat5e cables, 40 Cat6 cables or 25 Cat6a cables.
For larger jobs with more cables, you may want to consider the CAT32HP J Hook, or theCAT48HP J Hook.
CAT21HP j-hooks are sold individually at Discount Low Voltage. Full box quantity is 50 pieces.
Features
- Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
- Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
- Multiple color options aid in the identification and organization of the pathway application
- Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
- Tested according to DIN 4102-12
- Complies with EN 50174-2
- Meets ISO®/IEC 14763-2, TIA 568-C and TIA 569-C
Specification
Part Number: CAT21HP
Material: Steel
Finish: Pregalvanized
Diameter (Ø): 1 5/16"
Area: 2.29 in²
Cable Capacity, Cat 5e: 50
Cable Capacity, Cat 6: 40
Cable Capacity, Cat 6A: 25
Static Load (F): 60 lb
Certifications: cULus
Standard Packaging Quantity: 50 pc (sold individually)
Material: Steel
Finish: Pregalvanized
Diameter (Ø): 1 5/16"
Area: 2.29 in²
Cable Capacity, Cat 5e: 50
Cable Capacity, Cat 6: 40
Cable Capacity, Cat 6A: 25
Static Load (F): 60 lb
Certifications: cULus
Standard Packaging Quantity: 50 pc (sold individually)
